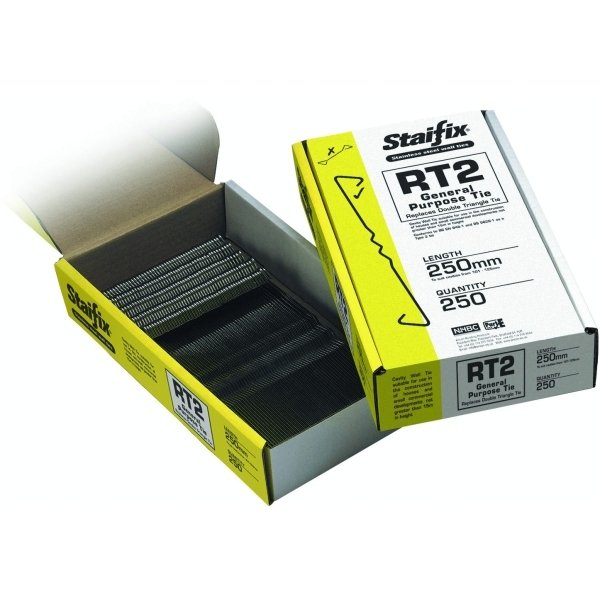

General Purpose Wall Ties act to secure two leaves of a cavity wall to each other, allowing them to act as one structurally.

These General Purpose Wall Ties are specified as type 2 for general purpose use.
Pack: 250
Length: 250mm
Stainless Steel
Complies with BS EN 846-6 in cavities 125mm or 100mm wide
These wall ties are shaped specifically to prevent moisture from travelling across the wall cavity.
These General Purpose Wall Ties are suitable for use installed either way up and requires a minimum mortar joint of 10mm. The compressive load capacity is 1321N and the tensile load capacity is 2419N.
