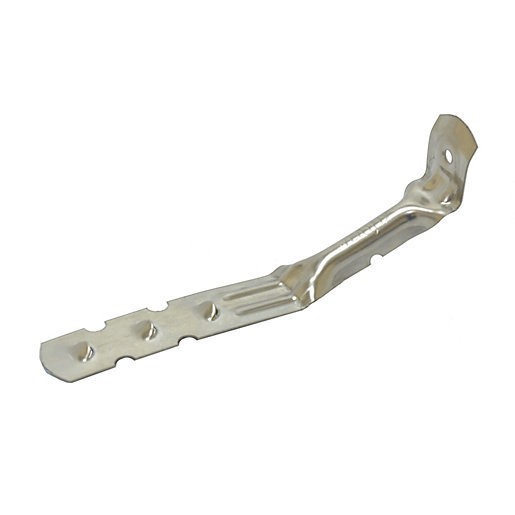

The Staifix STF6 tie is designed to fix brickwork or blockwork to timber-framed structures up to 4 storeys in height. The tie is cranked to simplify correct installation and to prevent moisture from crossing the cavity. It is supplied complete with an annular ring shank nail. The STF6 has a cross-sectional area of 12mm2.
The Staifix STF6 tie has been independently tested for use with 15mm OSB (Oriented Strand Board) SIPS Panel. The standard annular ring shank nail should be replaced with a 4 x 30mm stainless steel Spax® screw.
Lengths:
To suit 50mm cavities (tie length 127mm)
To suit 75mm cavities (tie length 152mm)
To suit 100mm cavities (tie length 179mm)
