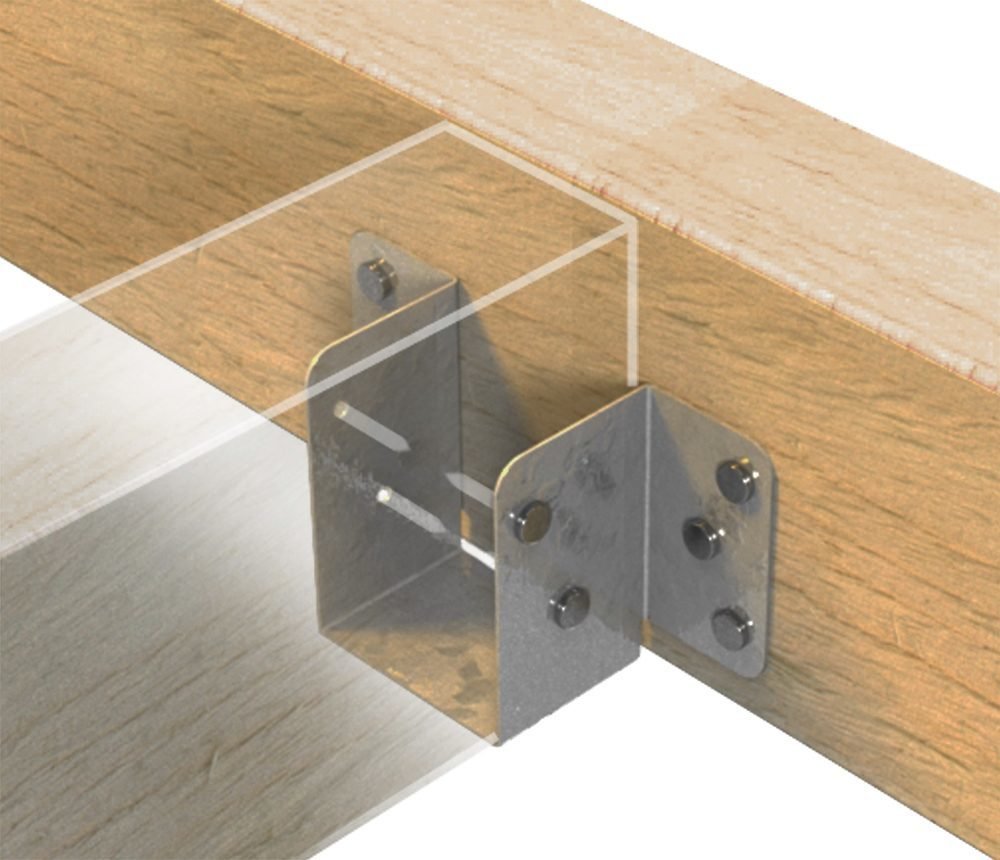

Speedy Minor U Joist Hanger 50mm SM (Upto 100mm Joist Depth)

Product Details

Brand Expamet BAT

Generic Re SM

Product Range Builders Metalwork

Product Sub-range Joist Hangers

Product Type Face Fixed Joist Hanger

European Standard/ETA ETAG015 (ETA13/0803)

Test Standard ETAG015/TR016

Notified Body Exova BM Trada (NB 1224)

Material Galvanized Mild Steel DX51D+Z275 to EN10346:2015

Coating/Finish/Colour 275g/m² Zinc Coating

Plaster/Render/Joist depth Max joist height 100mm

Material Gauge 0.9mm

Declared Loadbearing Capacity As Table

Fire Rating Euroclass A1

Fixing Hole Dimensions 3.8mm

Fixing Type 3.75 x 30mm Square Twisted Sherardized/Galvanised Nails

Installation requirement 1 Fix using all nail holes to achieve stated loads.

Installation requirement 2 Ensure hanger is the correct size for joist. Any slack to be packed.

Installation requirement 3 Joists are to be cut square with a gap not exceeding 6mm from the rear of the hanger.

Packaging weight 0

Features/Benefits 1 275g/m2 Gavanized Coating

Features/Benefits 2 Lightweight

Features/Benefits 3 Covered by a European Technical Approval

Options 1 None
