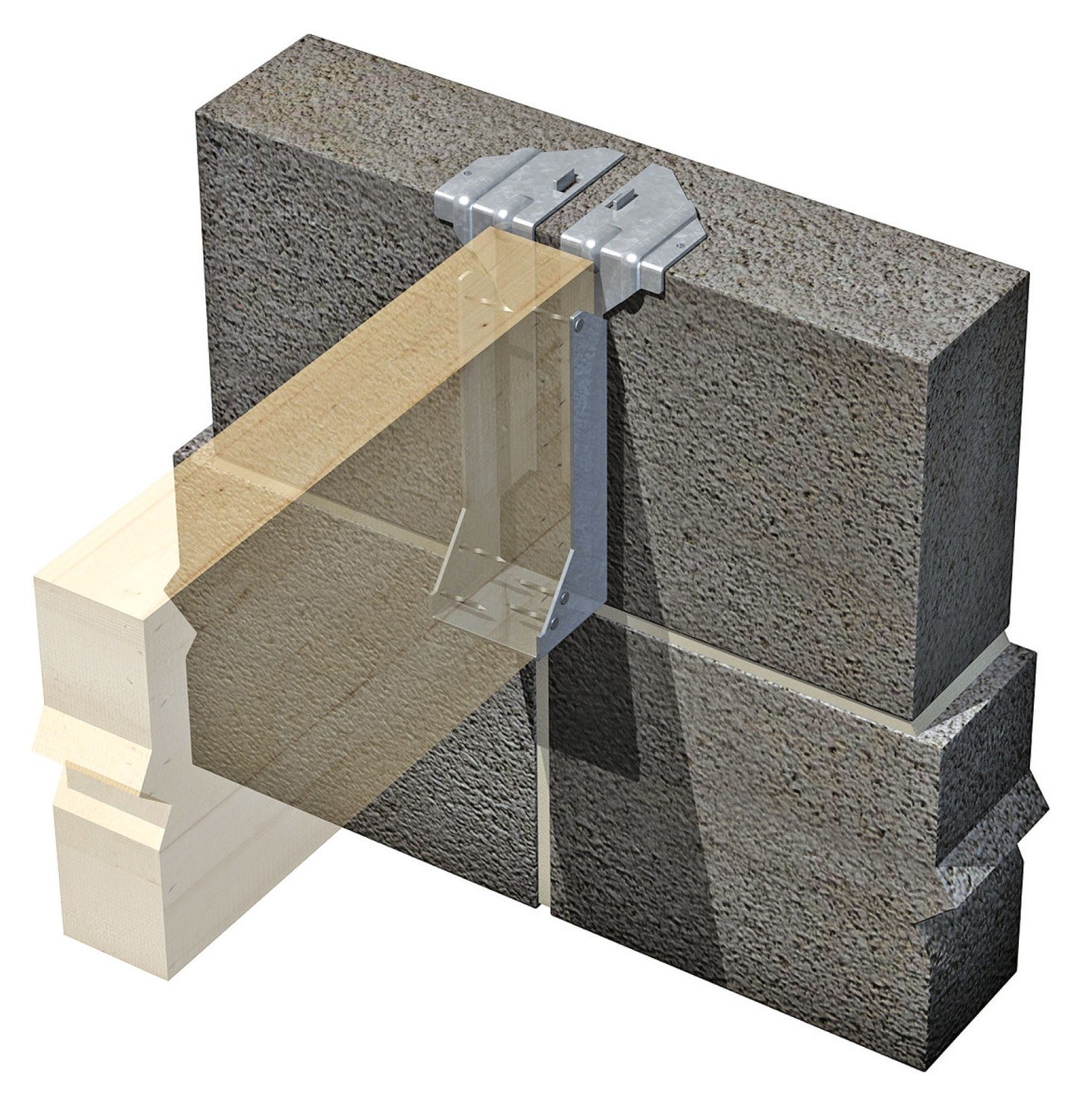

Masonry (built-in) Single Piece Hanger SPHS

Product Details

Brand Expamet BAT

Generic Ref SPHS

Product Range Builders Metalwork

Product Sub-range Joist Hangers

Product Type Masonry (built-in) Single Piece Hanger

European Standard/ETA BS EN845-1:2013+A1:2016

Test Standard BS EN 846-8:2000

Notified Body Lucideon Ltd (NB 1289)

Material Galvanized Mild Steel DX51D+Z600 to EN10346:2015

Coating/Finish/Colour 600g/m² Zinc Coating

Length 1/Projection 75mm Shoe, 75mm Flange

Material Gauge 2.0mm

Fire Rating Euroclass A1

Fixing Type Built in to masonry - No mechanical fixings required to wall. 3.75x30 square twisted nails to connect joist.

Installation requirement 1 Back of hanger must be tight against wall.

Installation requirement 2 Joists are to be cut square with a gap not exceeding 6mm from the rear of the hanger.

Installation requirement 3 A minimum 675mm of set masonry must be in place over support flange before loads are applied.

Installation requirement 4 Joist to be nailled through side gusset using 3.75x30mm square twisted nails.

Installation requirement 5 The underside of joists should be notched to provide a level surface for plasterboarding.

Packaging weight 0

Features/Benefits 1 Single piece, non welded construction

Features/Benefits 2 Non coaxial fixing holes

Features/Benefits 3 600g/m2 galvanized coating

Features/Benefits 4 Joists 150mm and above manufactured 10mm less to allow for notching/joist regularisation

Options 1 Joist widths: 38, 44,47,50, 63, 75, 89, 100, 125, 150mm

Options 2 Joist heights: 100-275mm in 25mm increments

Options 3 Return and Straddle options available
