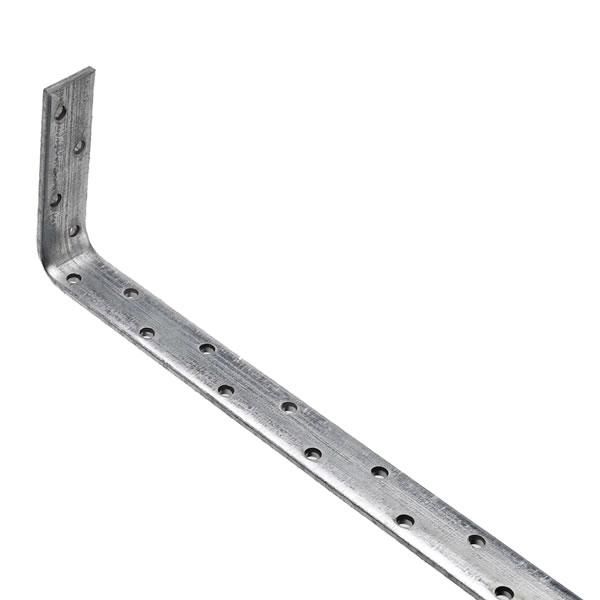

This galvanised Heavy Duty (horizontal) Restraint Strap features a 100mm Bent piece. 6mm fixing hole dimensions to suite 4 x 75mm round wire nails. Build in with downstand tight against face of block. Floor fixing: Across 3 joists (perpendicular) with noggins between. 1 fixing per joist, 1 per noggin (5 total)

• BS EN 846-4:2002
• BS EN845-1:2013+A1:2016
• Heavy Duty (horizontal) Restraint Strap
• Galvanized Mild Steel S250GD+Z600 to EN10346:2015
• 600g/m2 Zinc Coating
• 8kN (ULS) when built into wall Declared Loadbearing Capacity
• Width/Wing Length 28mm
• Material Gauge 4.0mm
• Individual Weight (kg) 0.810/m
• Euroclass A1
• Declared Tension Capacity 22kN (ULS)
• 600g/m2 Galvanized coating
• Frequent 6mm fixing holes for convenience
• 4x75mm Round wire nails
• Fixing Hole Dimensions 6mm
